Drain Cover & Frame

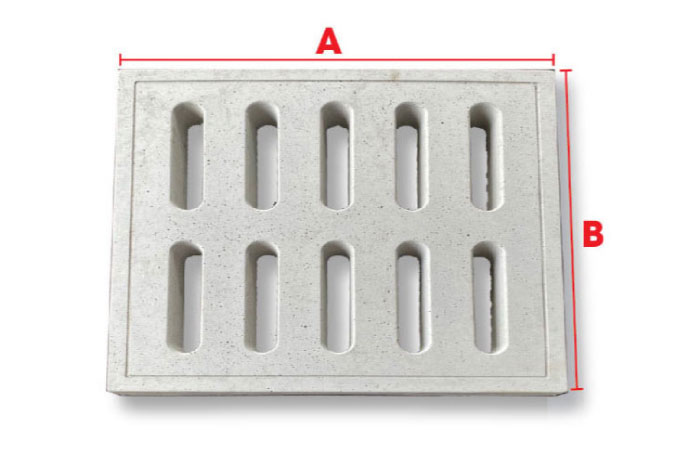

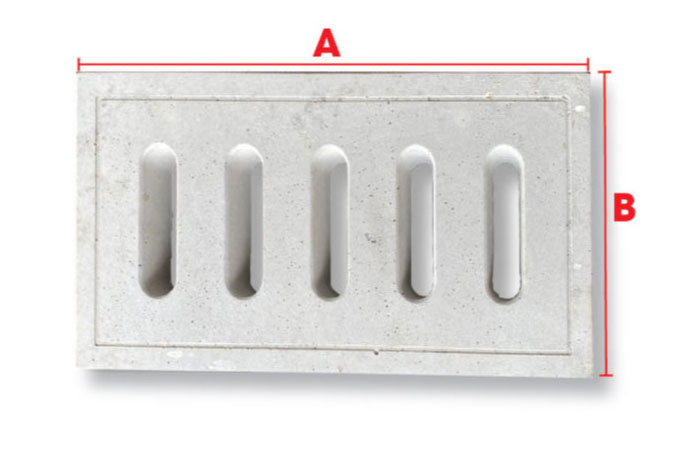

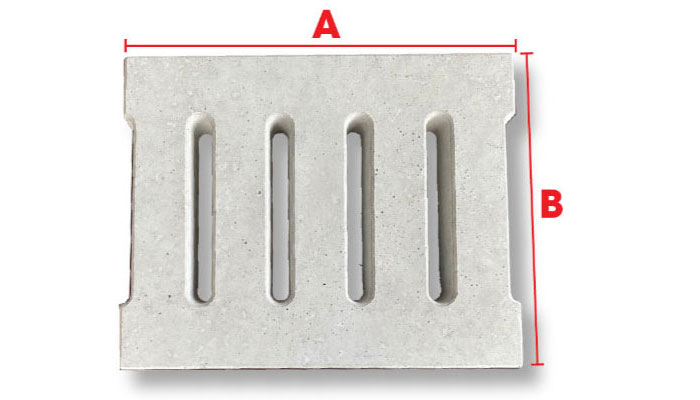

• Reinforced Concrete Drain Cover A

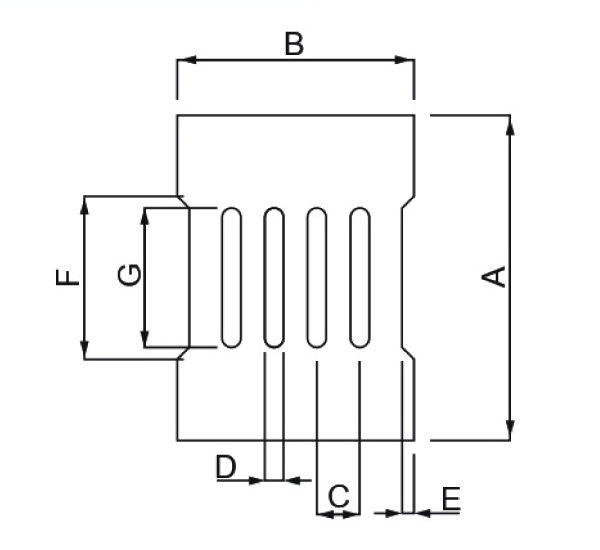

concrete drain cover malaysia

product specification

Cover
Product Code Length (A)
mm
Width (B)
mm
Thinkness
mm
Weight
kg
DC6684 600 600 80 52

*Scroll to the right to see more details.

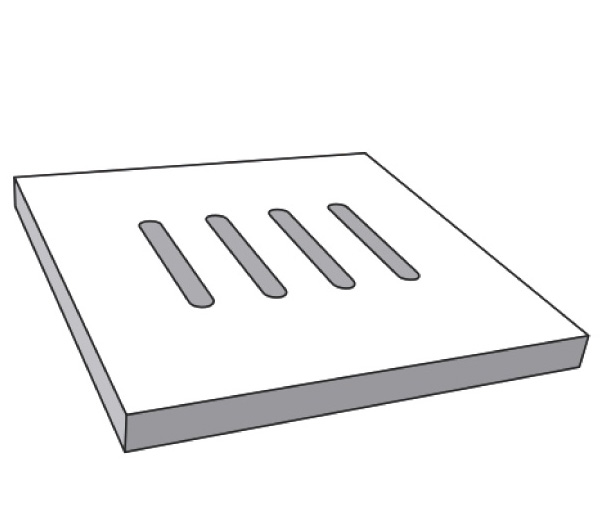

concrete drain cover malaysia

product specification

Cover
Product Code Length (A)
mm
Width (B)
mm
Thinkness
mm
Weight
kg
DC66510 600 600 50 31

*Scroll to the right to see more details.

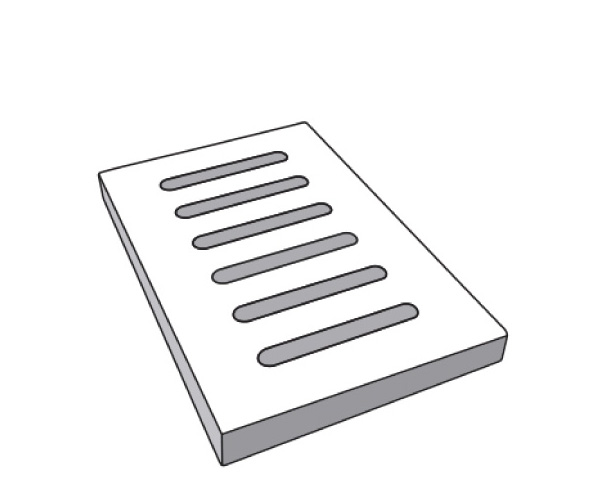

concrete drain cover malaysia

product specification

Cover
Product Code Length (A)
mm
Width (B)
mm
Thinkness
mm
Weight
kg
DC6355 600 300 50 16

*Scroll to the right to see more details.







• Reinforced Concrete Drain Cover & Frame B

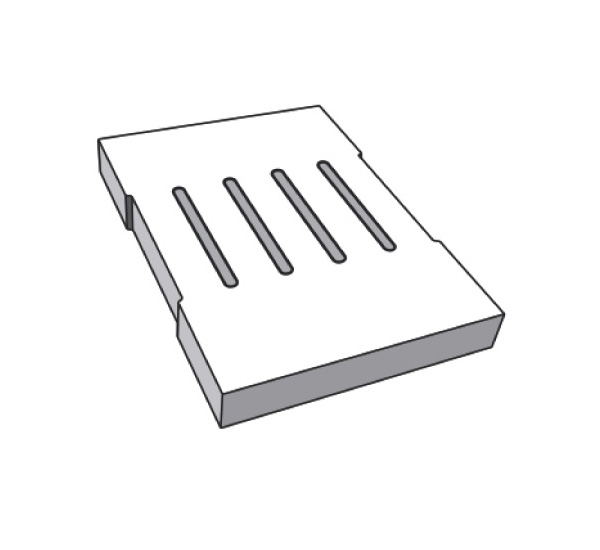

precast drain

concrete drain cover

product specification

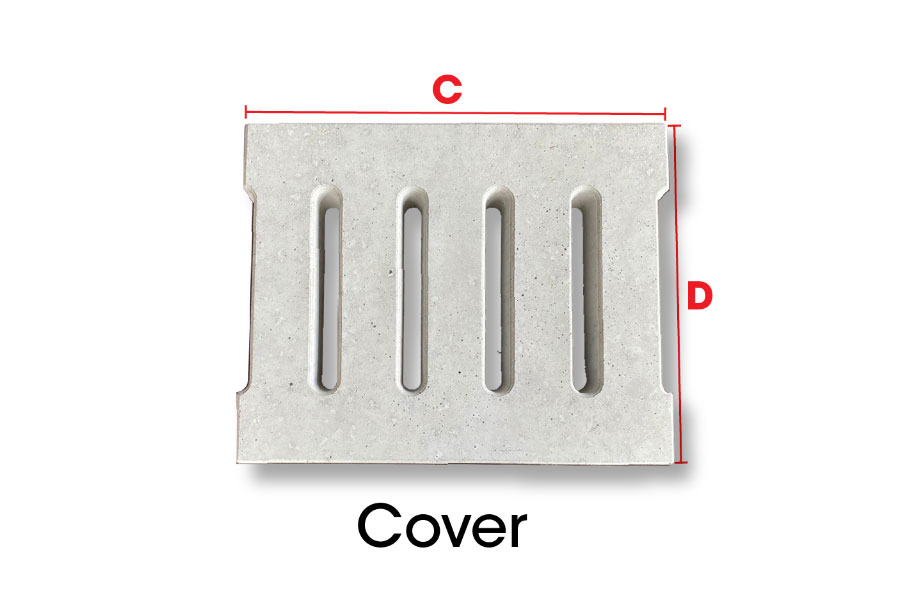

Cover
Product Code Length (C)
mm
Width (D)
mm
Thinkness
mm
Weight
kg
DC5365 500 300 60 18

*Scroll to the right to see more details.

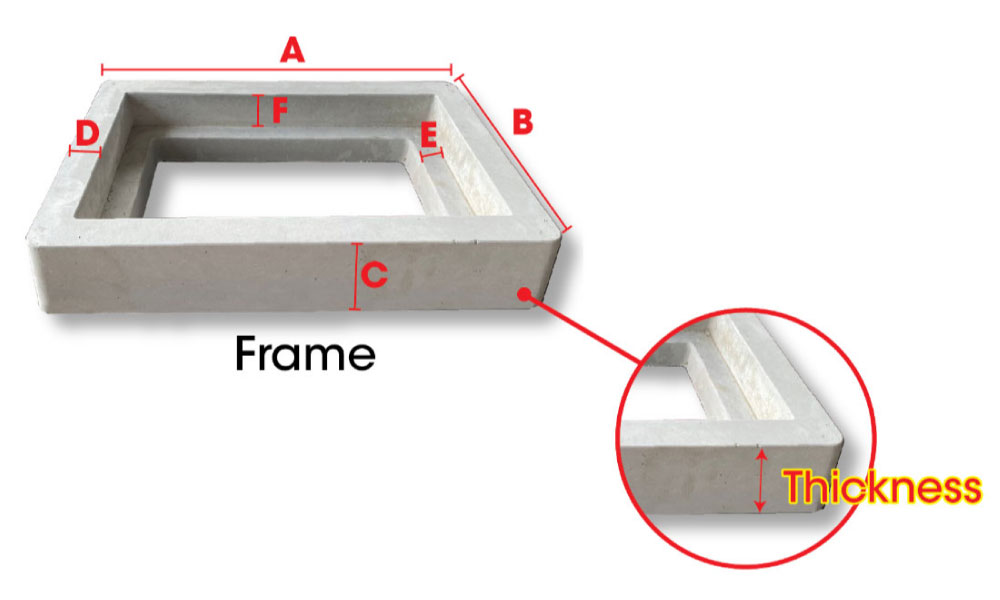

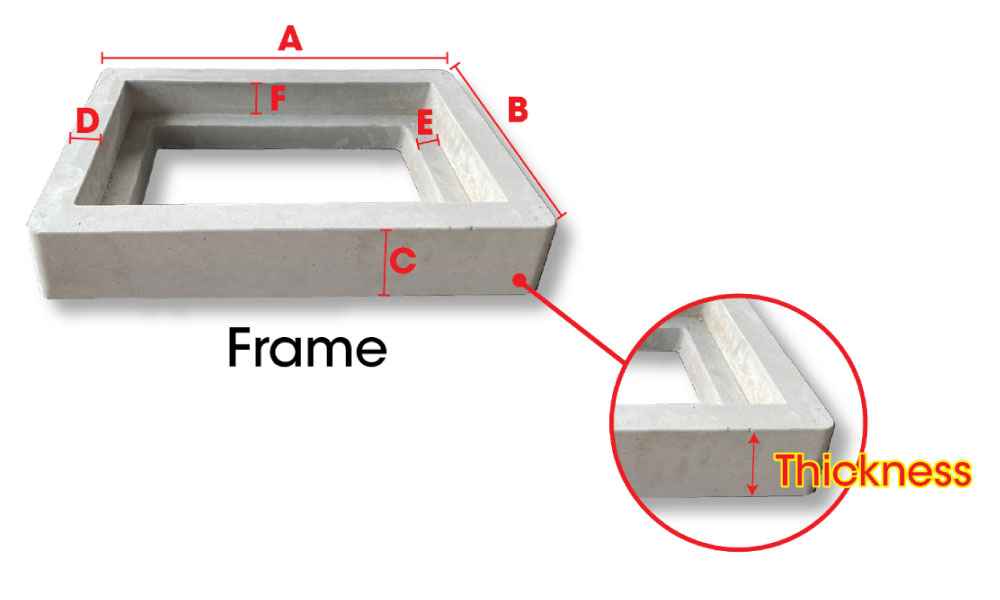

Frame
Product Code A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
kg
CF5365 600 400 100 45 40 60 29

*Scroll to the right to see more details.

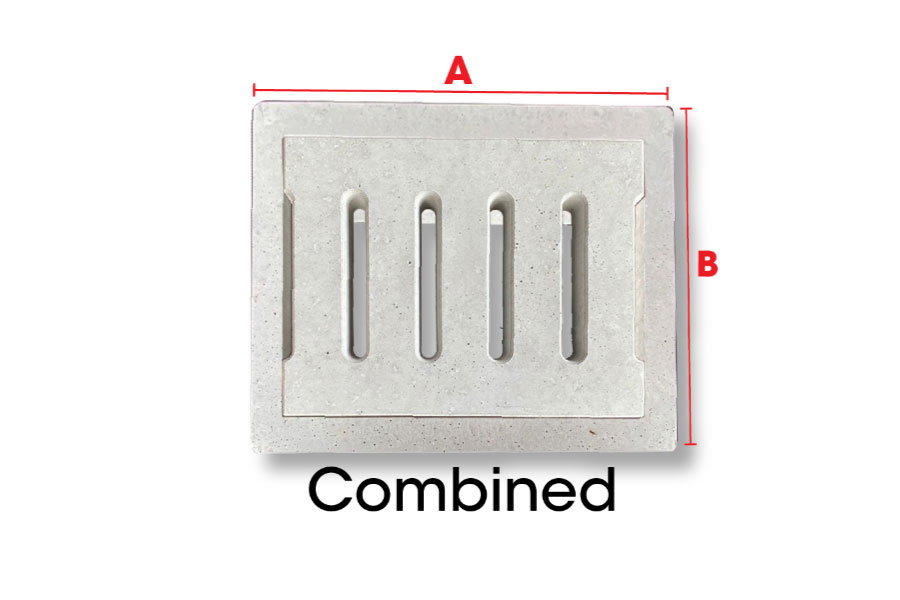

Combined
Product Code Length (A)
mm
Width (B)
mm
Thinkness
mm
Weight
kg
DCF5365 600 400 100 47

*Scroll to the right to see more details.

drain cover







• Reinforced Concrete Drain Cover & Frame C

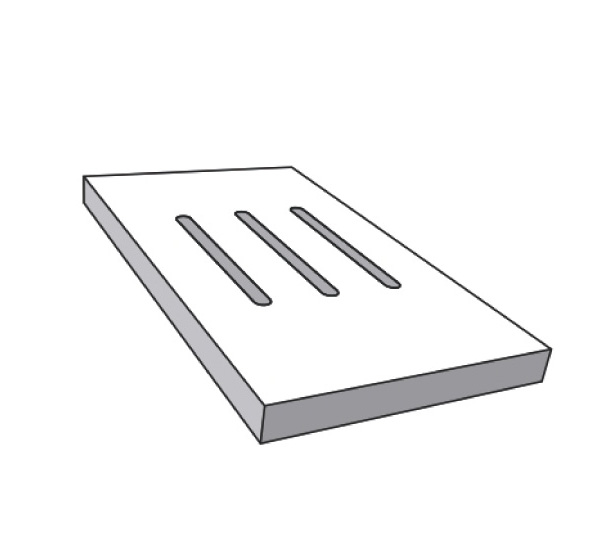

concrete drain cover

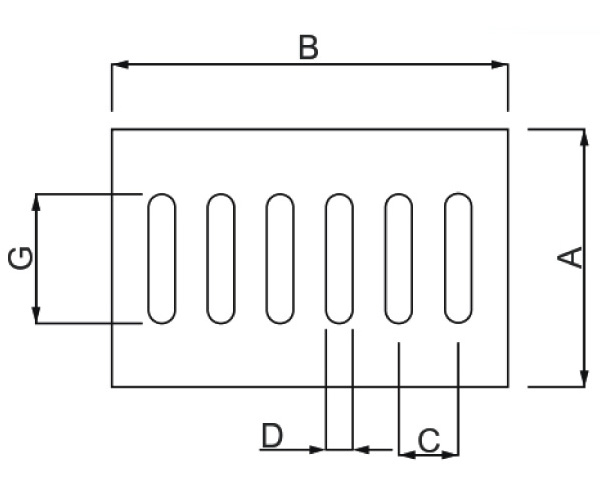

Reinforced Concrete Drain Cover

product specification

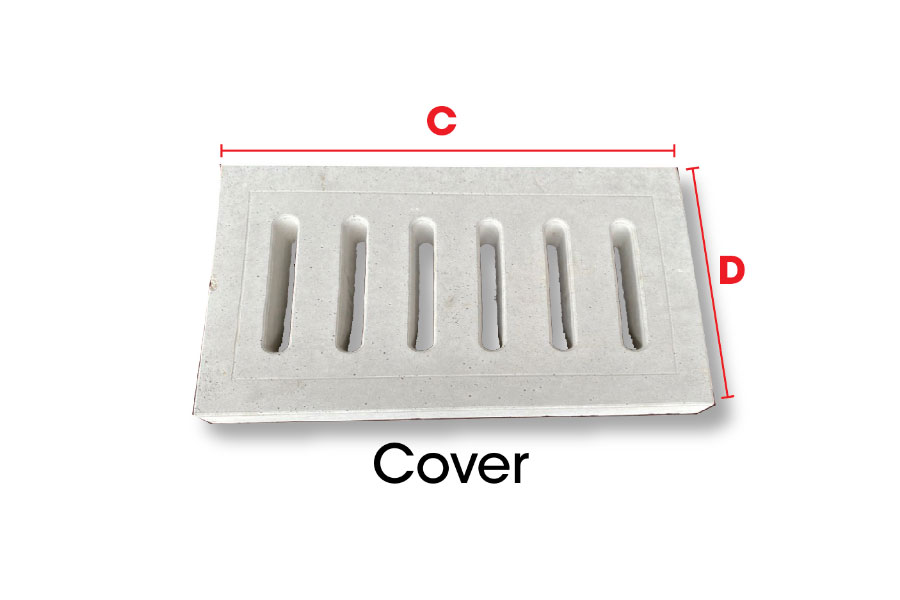

Cover
Product Code Length (C)
mm
Width (D)
mm
Thinkness
mm
Weight
kg
DC5464 500 400 60 23

*Scroll to the right to see more details.

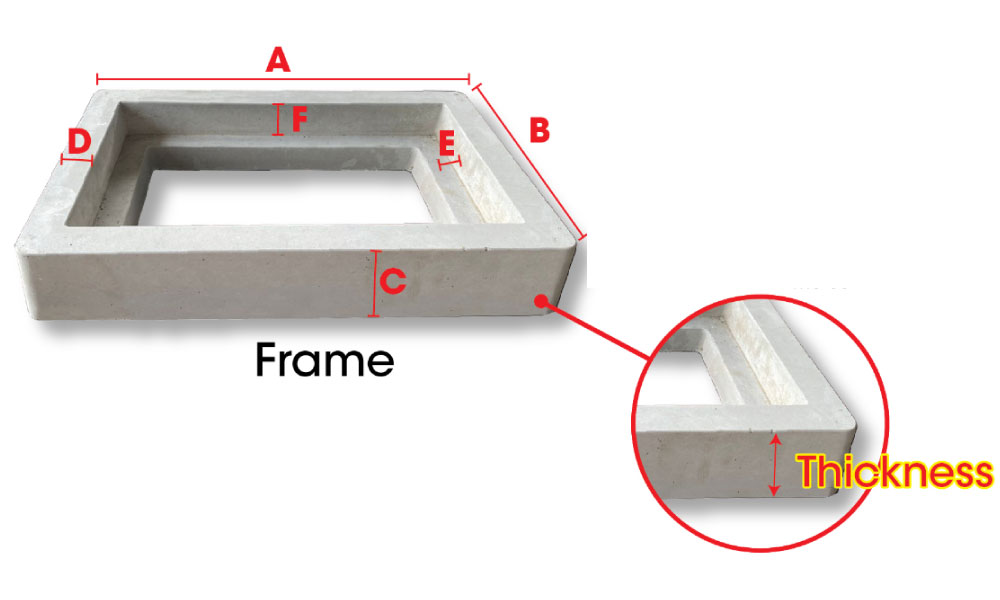

Frame
Product Code A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
kg
CF5464 600 500 100 45 35 50 35

*Scroll to the right to see more details.

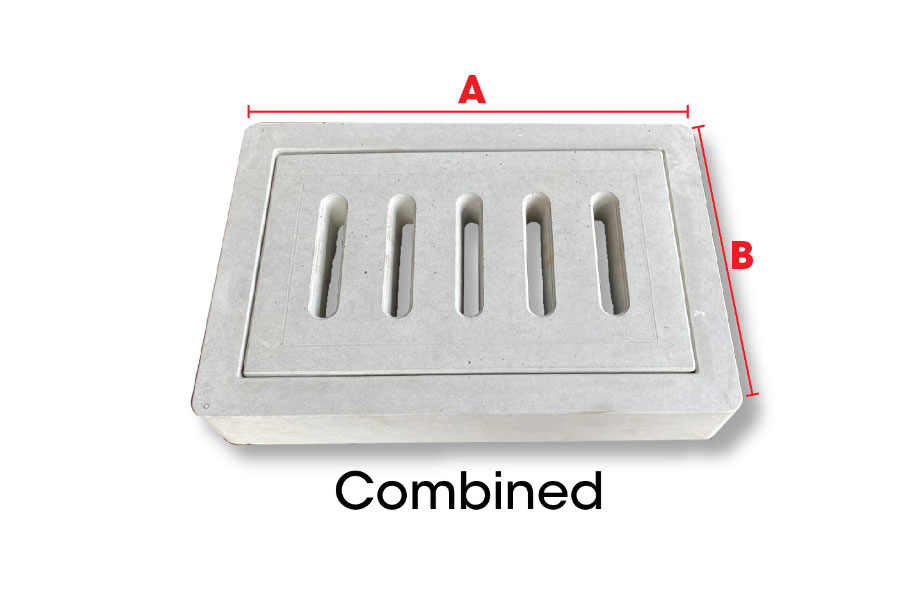

Combined
Product Code Length (A)
mm
Width (B)
mm
Thinkness
mm
Weight
kg
DCF5464 600 500 100 58

*Scroll to the right to see more details.

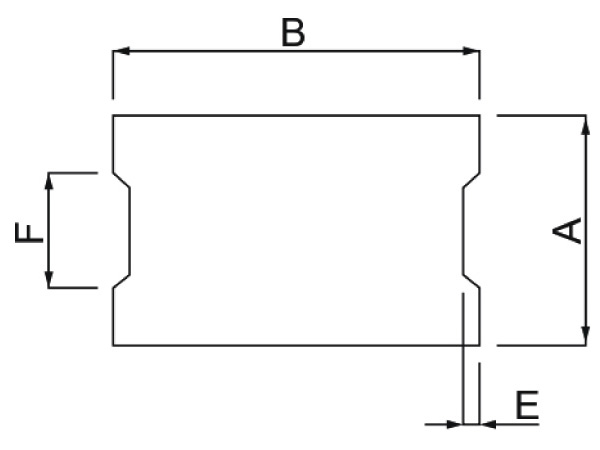

Reinforced Concrete Drain Cover







• Reinforced Concrete Drain Cover & Frame D

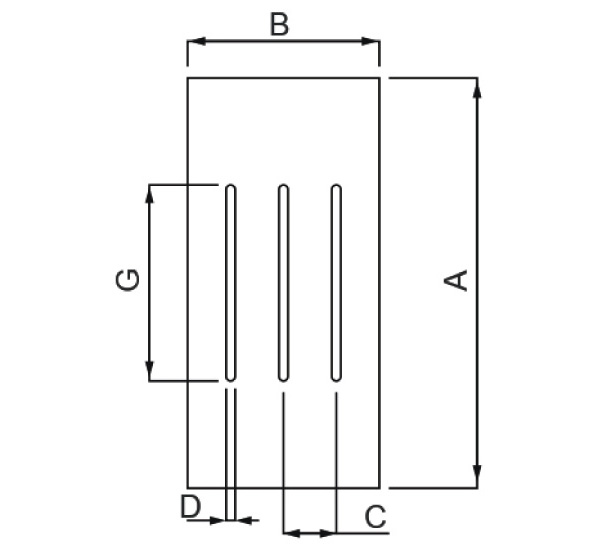

Concrete Drain Cover

precast drain

product specification

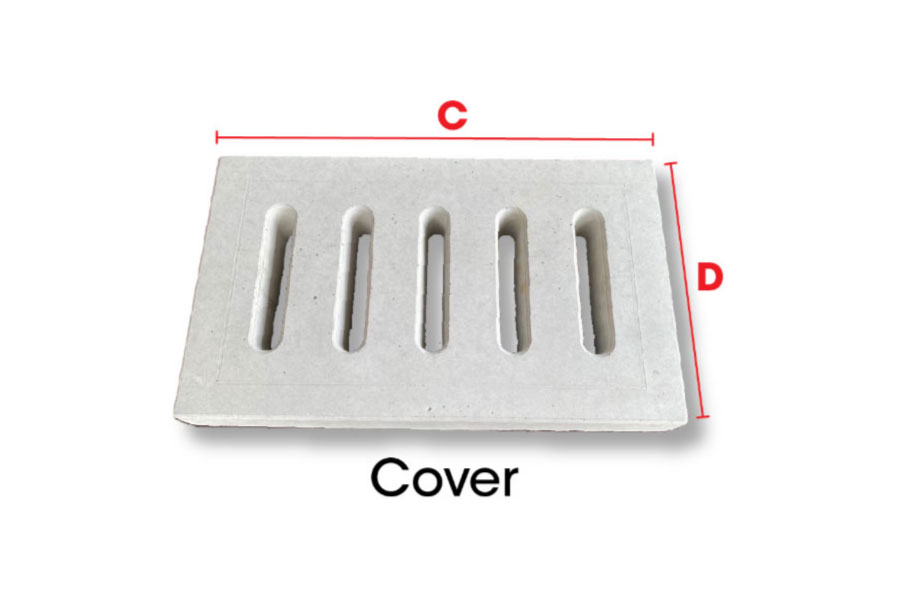

Cover
Product Code Length (C)
mm
Width (D)
mm
Thinkness
mm
Weight
kg
DC6466 600 400 60 27

*Scroll to the right to see more details.

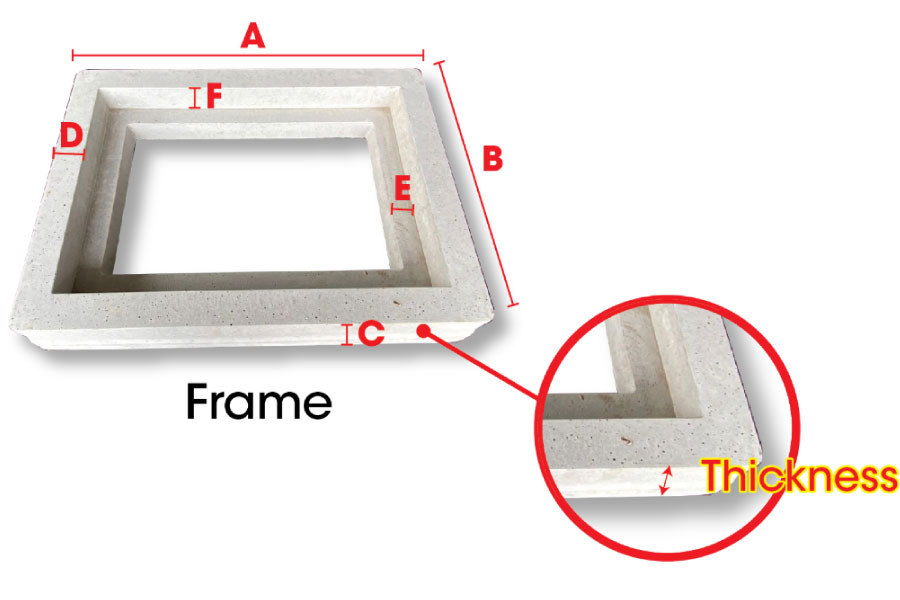

Frame
Product Code A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
kg
CF6466 700 500 100 50 40 60 41

*Scroll to the right to see more details.

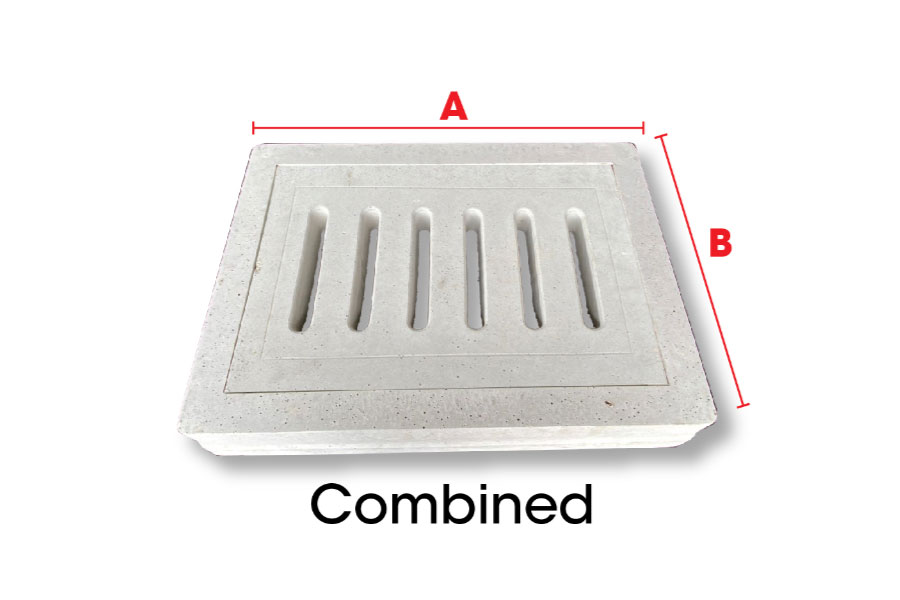

Combined
Product Code Length (A)
mm
Width (B)
mm
Thinkness
mm
Weight
kg
DCF6466 700 500 100 68

*Scroll to the right to see more details.

precast drain







• Reinforced Concrete Drain Cover & Frame E


precast drain

 drain

product specification

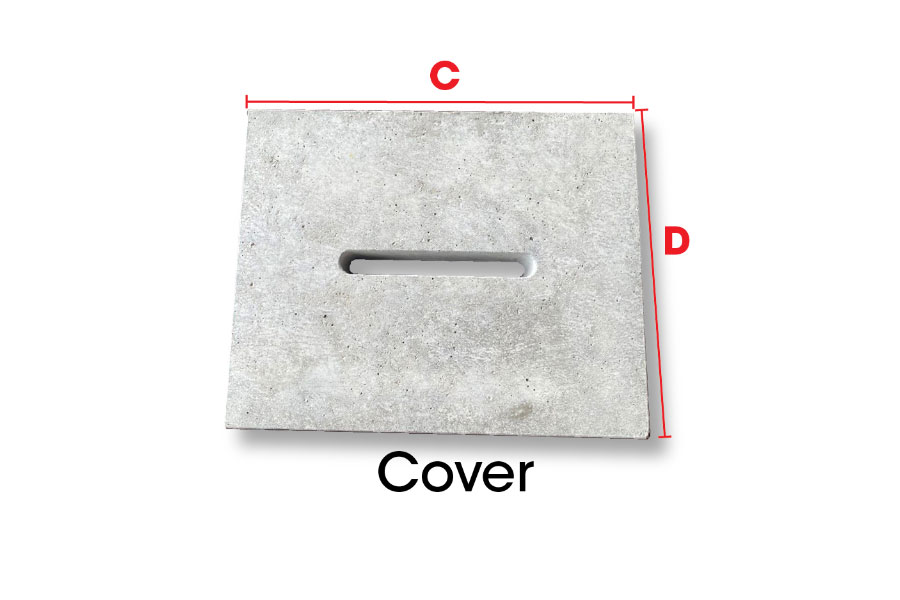

Cover
Product Code Length (C)
mm
Width (D)
mm
Thinkness
mm
Weight
kg
DC5461 500 400 60 26

*Scroll to the right to see more details.

Frame
Product Code A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
kg
CF5461 600 500 100 45 35 50 35

*Scroll to the right to see more details.

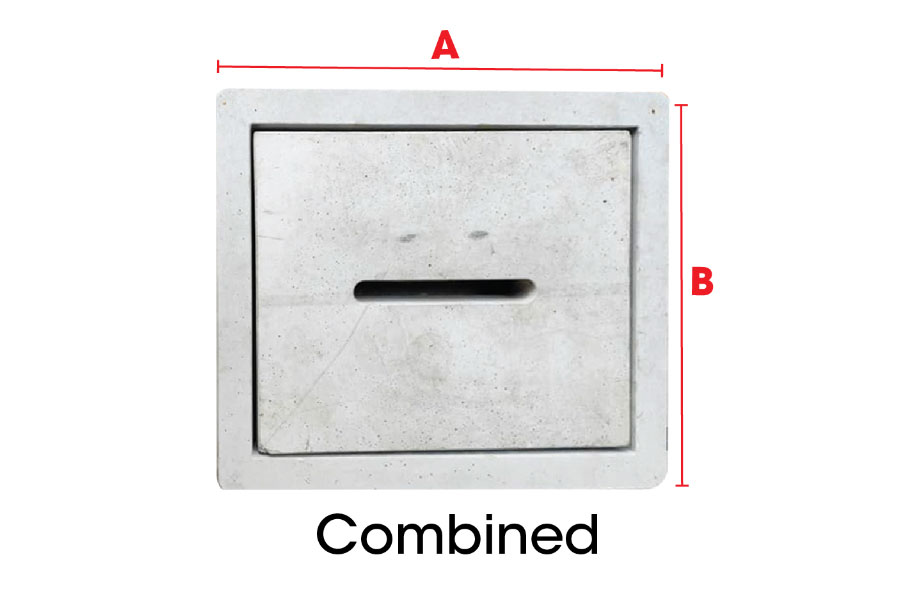

Combined
Product Code Length (A)
mm
Width (B)
mm
Thinkness
mm
Weight
kg
DCF5461 600 500 100 61

*Scroll to the right to see more details.

precast drain
